Dioctyl fumarate ester MAXIMOL® FOK-670
What is FOK-670?

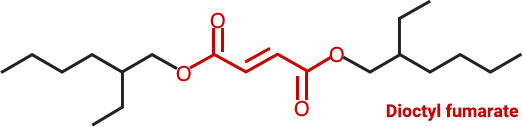

An aliphatic ester obtained through dehydrating condensation reaction between fumaric acid and 2-ethylhexanol (octyl alcohol)
Chemical Substances Control Law: Existing Chemical Substances: Official gazette order number (2)-1099
CAS RN®：141-02-6
EINECS No：2054482
Registered in TSCA: Yes
Characteristics of FOK-670
- as a solvent and a reactive modifier -
- It is widely used as a starting material for surface-active agents of a salt of dialkylsulfosuccinic acid which has excellent permeability.
- It has a double carbon bond as the reaction and bridging point with monomers.
- It is now widely used as a modifier to improve the softness or brittleness of various resins and to adjust viscosity (viscosity reduction).
- It is authorized as a monomer for polymerization or copolymerization to polymers for food packaging by the U.S.FDA.
- We are an integrated overall manufacturer from raw materials to end products and has its own highly productive and stable supply system.
Typical properties of FOK-670
| Number-average molecular weight | Viscosity (25℃) (mPa・s) |
Purity (%) |
Color (APHA) |
Refractive index | Specific gravity (20℃) |
SP-value | Flash point (℃) |
|
|---|---|---|---|---|---|---|---|---|
| FOK-670 | 340 | < 30 | > 98 | < 30 | 1.455 | 0.94 | 9.0 | 190 |
| Dioctyl phthalate | 390 | ー | ー | ー | 1.485 | 0.99 | 9.5 | 218 |
| Dioctyl adipate | 370 | ー | ー | ー | 1.446 | 0.93 | 8.9 | 192 |
*1 Purity: Measured by GC method
*2 SP-value: Measured by Fedors method δ(cal/cm3)1/2
*3 ignition point of 70°C or more and less than 200°C: Class 4 Petroleum No.3
200°C or more and less than 250°C: Class 4 Petroleum No. 4
*4 Reference: Catalogues of vinyl chloride plasticizers, Polymer Industry Research Institute
Thermal properties of FOK-670
Weight loss by heating
Comparison with typical polyether polyols:
FOK-670 < PPG400(polypropylene glycol)
FOK-670 ≒ PEG400(polyethylene glycol)
